J系列-2706
發(fā)布日期：2024-01-12 瀏覽次數(shù)：1000

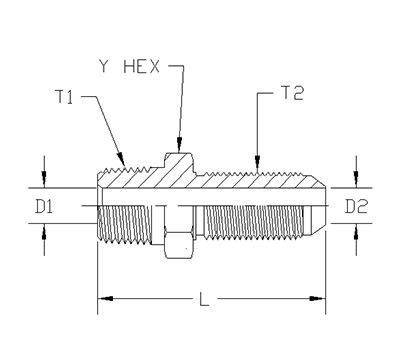

| ITEM | P/N | Y HEX | T1 | D1 | T2 | D2 | L |
| 1 | 2706-04-04-FG | 0.688 | 1/4-18 NPTF | 0.281 | 7/16-20 UNF | 0.172 | 2.10 |
| 2 | 2706-04-06-FG | 0.813 | 1/4-18 NPTF | 0.281 | 9/16-18 UNF | 0.281 | 2.18 |
| 3 | 2706-06-06-FG | 0.813 | 3/8-18 NPTF | 0.406 | 9/16-18 UNF | 0.297 | 2.20 |
| 4 | 2706-08-08-FG | 1.000 | 1/2-14 NPTF | 0.391 | 3/4-16 UNF | 0.391 | 2.53 |
| 5 | 2706-12-12-FG | 1.375 | 3/4-14 NPTF | 0.609 | 1-1/16-12 UNF | 0.609 | 2.92 |
| 6 | 2706-16-16-FG | 1.625 | 1-11-1/2 NPTF | 0.844 | 1-5/16-12 UNF | 0.844 | 3.17 |
